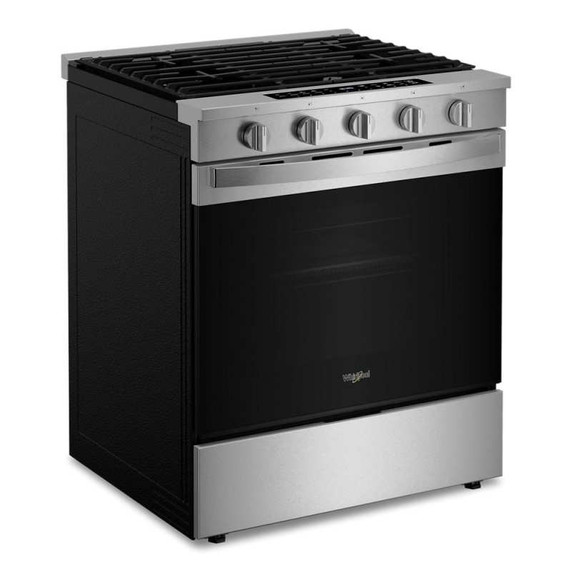

Whirlpool® 30-inch Smart Slide In Gas Range with Air Cooking Technology, No Preheat Air Fry, WipeClean™ Coating, Steam/Self Clean and High Speed Preheat WSGS7530RZ

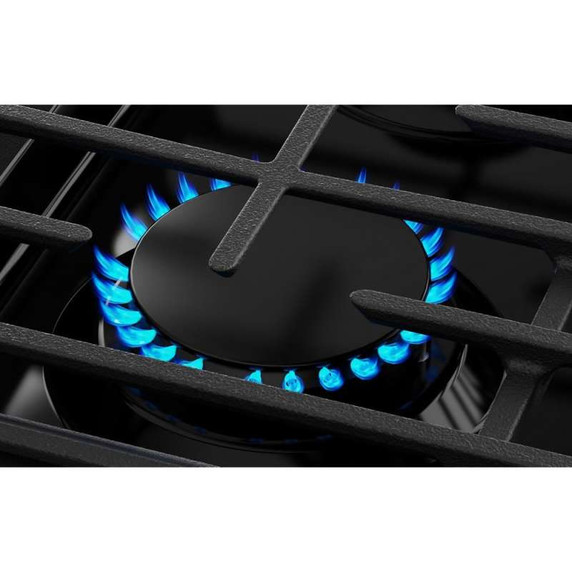

SpeedHeat™ BurnerUse the SpeedHeat Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.
No Preheat Air FrySave time* with No Preheat Air Fry. Our most advanced air fry mode delivers the right heat at the right time, while using less oil than traditional deep frying. Get fast, crispy, tasty results with No Preheat Air Fry *Compared to WFE550S0LZ
Air BakingGo from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
Air RoastSeal in flavours and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavour of hearty dishes like pot roast and whole chicken.
Air BroilMelt, char and sear in a snap with Air Broil. Our high-speed fan drives air flow to drives intense heat directly to the top of the oven. Prepare juicy chops, crispy vegetables and gooey s'mores with the added power of intense air-driven heat.
Air ReheatSkip microwaving and add crispness to leftovers like pizza with Air Reheat. Our high-speed fan drives heat to quickly bring food up to temp.
EZ-2-Lift™ Hinged Cast-Iron GratesGet quick access to spills with our industry-first, dishwasher safe EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
Smart Feature UpdatesStay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with Smart Feature Updates through the Whirlpool app.* Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Dishwasher Safe Air Fry Basket IncludedFor easy cleaning, put the included Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.

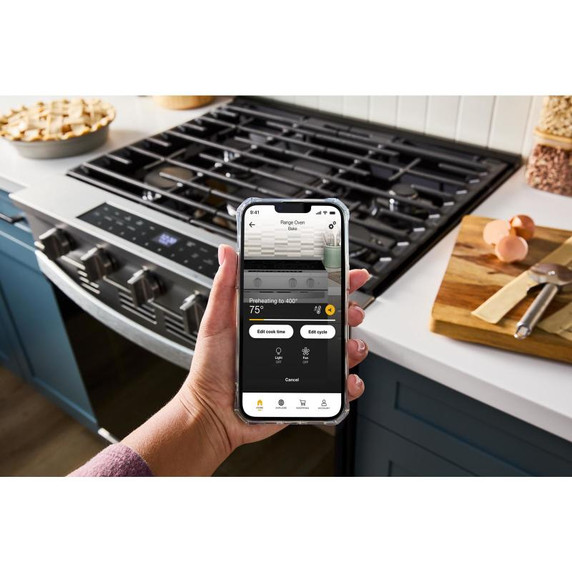

Smart RangeWhen you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Steam CleanUse the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
Self CleanEasily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters.

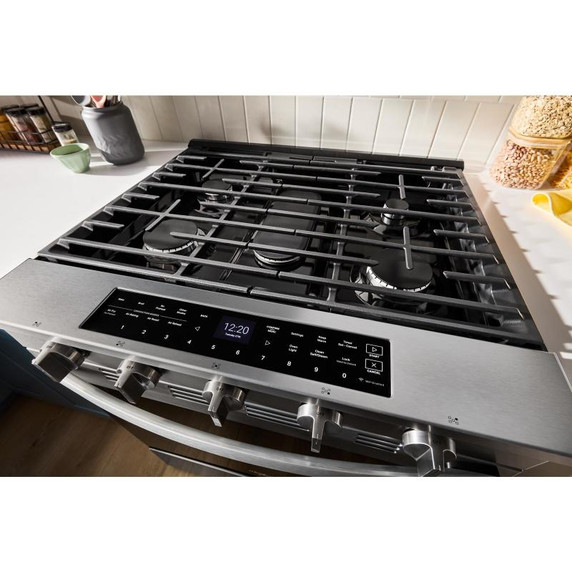

Edge-to-Edge GratesEnjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
Cooktop FlexibilityEasily cook multiple dishes at once with a flexible cooktop that offers a range of element sizes and power levels.
Anti-Fingerprint Stainless SteelAvailable in a stainless finish that’s easy to clean and resists fingerprints and smudges.
No Preheat ModeTake preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
Keep Warm SettingUse the keep warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
Sabbath ModeSabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Controls
Knob TypeWeighted
Electronic Display TypeLED
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Watts1
Configuration and Overview
Fuel TypeGas
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS
ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan Parent
Product To Product Pairs
Optional Accessories4396096RB, W11692811
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Total Gas Btus Oven S16,500

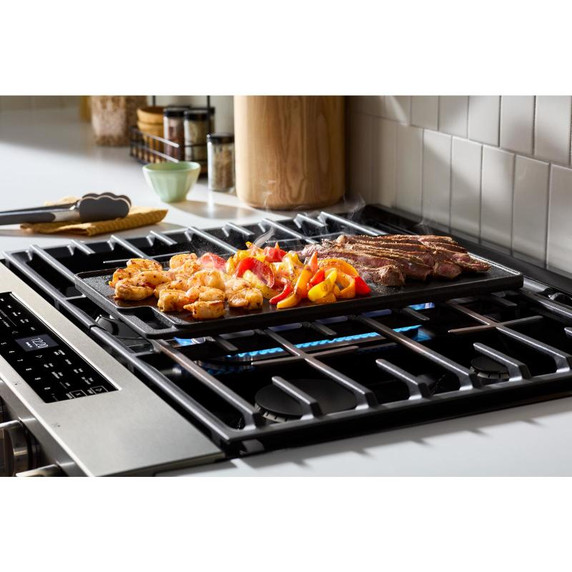

GriddleNo, Optional Accessory
Total Gas Btus Cooktop63,000
Certifications
ULYes
CULYes
ADA CompliantYes
Star K CertifiedStar K Certified
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Description
Range TypeSlide-in
Details
Broiler Element Power1300WElectricBroil
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Control LocationFront Control
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Cleaning TypeSteam Clean
Oven Interior Depth In Inches19.0
Number Of Rack Guides5
Number Of Oven Lights1

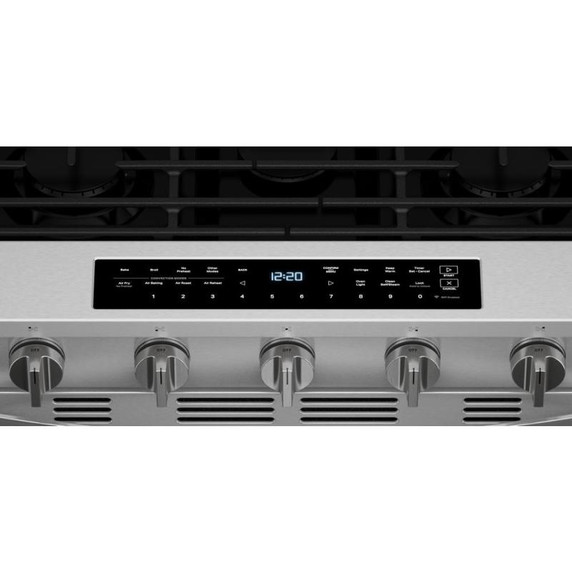

Oven Control TypeTap Touch
Broiler LocationTop Center
Number Of Oven Racks3
Bake Element Power16500BTU
Convection Element TypeTrue
Oven Rack Type2 Standard and 1 Max Capacity
Convection Element Power Watts925
Convection FunctionsBake; Broil
Oven Interior Width In Inches24.25
Oven Control Knob TypeN/A
Oven Ignition TypeSpark
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Right Front Element Burner TypeSealed Burner
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Ignition TypeDirect Spark Ignition
Left Rear Element Burner Power10000BTU
Center Front Element Burner Power12000BTU
Right Front Element Burner Power18000BTU
Grate DetailsCast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Carton Depth31.0"
Carton Height43.0"
Carton Width32.0"
Depth Closed Excluding Handles27.88"
Depth Closed Including Handles29.18"
Depth With Door Open 90 Degree48.5"
Gross Weight196.0 lbs.
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Depth29.18"

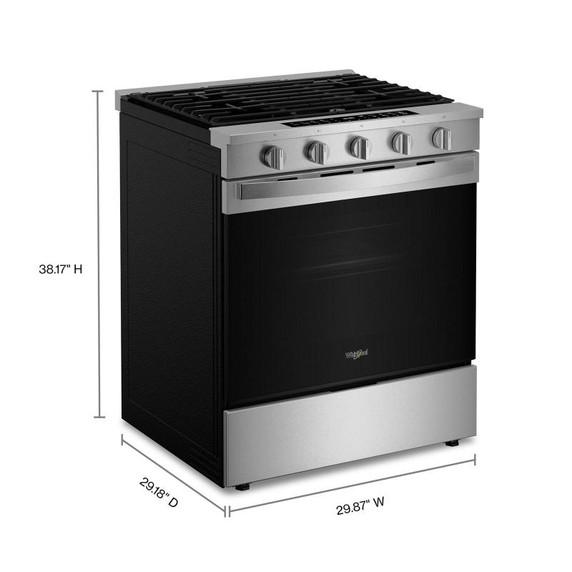

Height38.17"
Maximum Height38.17"
Minimum Height36.67"
Width29.87"
Capacity FT3 (cubic feet)5.0
